DS-301

A general purpose elastomer bellows nonpusher seal.


Application

  • For use in pumps, compressors and other rotary shaft equipment.

  • For pulp and paper, petrochemical, food processing, wastewater treatment and other demanding applications.

Type DS-301 mechanical seals is a general purpose elastomer bellows nonpusher seal.

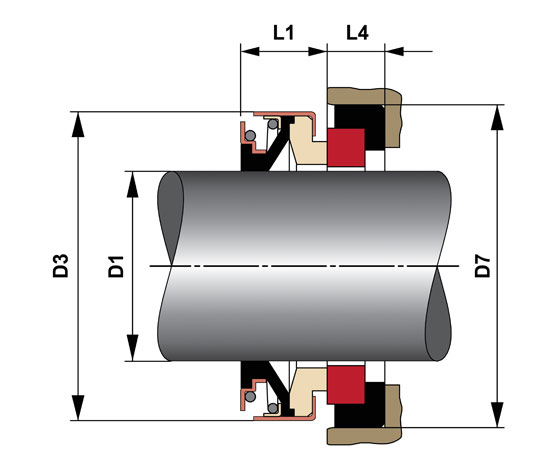

 View Sheet

Operating Conditions


  • Max. Operating Pressure : 8 kg/cm 2 *
  • Temperature Range : -15 to 200 *
  • Max. Rubbing Speed : 10 m/s

*(Depend on combination of materials)

Design Features/Benefits


  • Non-Clogging, Single Coil Spring will not run foul due to fluid contact.
  • Automatic adjustment fully compensates for normal shaft end play and run-out, seal face wear, and equipment tolerances.
  • Sealing faces are precision lapped to provide effective performance with maximum seal life.

Standard Materials


  • Metal Parts : SUS 316
  • Spring : SUS 316
  • Rotary Face : Silicon Carbide/Tungsten Carbide/Carbon
  • Stationary Face : Ceramic/Silicon Carbide/Tungsten Carbide
  • Secondary Seals : Fluoroelastomer/Nitrile/Ethylene Propylene

*(Other configuration of materials also available on request)
