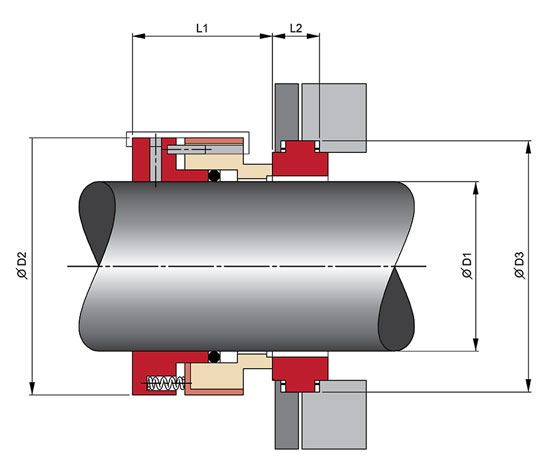

DS-700

Suitable for a wide range of services conditions.


Application

  • For use with extremely corrosive chemicals, including concentrated acids and salts, strong oxidizing and reducing agents, and chemically active organic compounds.
  • For external mounting in pumps and agitators vessels.
  • Metallic components are located outside the seal chamber and isolated from the process liquid.

 View Sheet

Operating Conditions


  • Max. Operating Pressure : 15 kg/cm 2 *
  • Temperature Range : -15 to 200 *
  • Max. Rubbing Speed : 25 m/s

*(Depend on combination of materials)

Design Features/Benefits


  • Mounted outside the seal chamber with only the internal surfaces of the secondary seals and face in contact with the process liquid.
  • Multiple springs exert even closing force on seal faces. Ensure even loading of seal face and compensates for acceptable shaft misalignment.
  • Setting-length of spring can be held in position by build in set-ring.



Standard Materials


  • Metal Parts : SUS 316
  • Spring : SUS 316
  • Rotary Face : Silicon Carbide/Tungsten Carbide/Carbon
  • Stationary Face : Silicon Carbide/Tungsten Carbide/Carbon
  • Secondary Seals : Fluoroelastomer/Nitrile/Ethylene Propylene/PTFE

*(Other configuration of materials also available on request)
