DS-400UW
Suitable for a wide range of services conditions.
Application
- General pressure sealing duties, chemical, including processing, refinery and petrochemical plants.
- Oils, solvents, refrigerants, water and food processing, and other demanding applications.

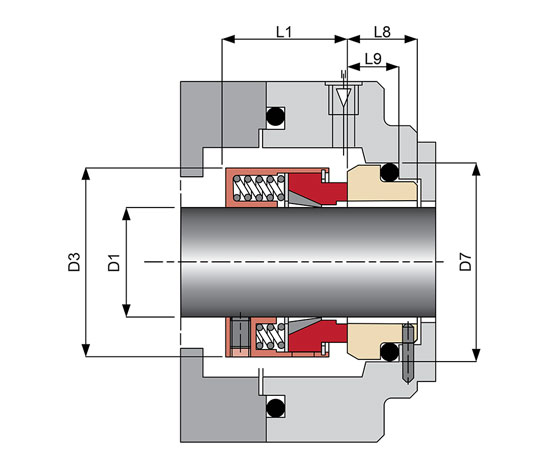

View Sheet
Operating Conditions
- Max. Operating Pressure : 14 kg/cm 2 * (For Unbalanced)
- Temperature Range : -15 to 200 *
- Max. Rubbing Speed : 15 m/s
*(Depend on combination of materials)
Design Features/Benefits
- Multiple springs exert even closing force on seal faces. Ensure even loading of seal face and compensates for acceptable shaft misalignment.
- Versatile design using components common to other O-ring and wedge type seals. Allow easy repair, reduced spares holding, and simple conversation to balanced/unbalanced or wedge seal.
- Setting-length of spring can be held in position by build in set-ring.
Standard Materials
- Metal Parts : SUS 316
- Spring : SUS 316
- Rotary Face : Silicon Carbide/Tungsten Carbide/Carbon
- Stationary Face : Silicon Carbide/Tungsten Carbide/Carbon
- Secondary Seals : Fluoroelastomer/Nitrile/Ethylene Propylene/PTFE
*(Other configuration of materials also available on request)
